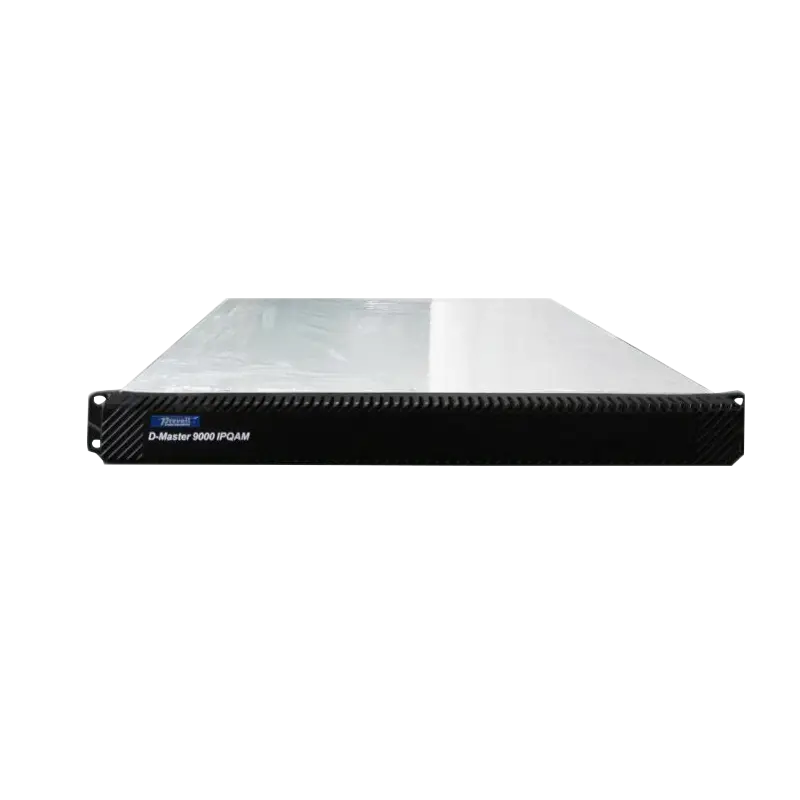

IPQAM: D-Master 9016B

D-Master 9016B is a new compact (1RU only) chassis and cost-effective QAM modulator, which is designed by Hangzhou Prevail according to DVB-related standards. D-Master 9016B has 1 module, 1 1000Mbps IP input, and 1 SPF input, the RF output supports 16QAM~256QAM modes. The D-Master 9016B has a very convenient management interface, the user can complete all operation access through the Ethernet port on the device.

send inquiry

Back List

Features

● Support 2 to 4 CA Simulcrypt, compatible with multiple conditional access systems

● Support IP input interface and able to multiplex and scrambling single or multiple programs

● In 1RU, up to 16 frequencies

● Support 1.15MHz~8.05MHz bandwidth

● Support 16QAM、32QAM、64QAM、128QAM、 256QAM modulation modes

● Support SFP input and IP input

● Support MPTS and SPTS over IP input, up to 512 UDP

● Provide RF output monitoring port (-20dB)

● Adjustable Symbol Rate up to 7Mbaud

● Max. effective bit rate up to 51.6Mbps (SR=7Mbaud, 256QAM)

● Nominal RF Output power ≥100dBuV ( with 0~10dB adjustable attenuation range) and 48~863MHz frequency range

● access via Ethernet link

Application

● DVB-C QAM modulation

● VOD edge IPQAM

● DVB+HFC networks

Compatible

● EN 50083-9

● ETSI TR 101 154

● ETSI TR 101 891

● EN 300 429

● ITU-T J.83A/C

Recommended Operating Conditions

Stress in excess of the maximum absolute ratings can cause permanent damage to the device (See Table 1)

Table 1 – Recommended Operating Conditions

Parameter	Symbol	Min.	Max.	Unit
Supply Voltage Note	V	90	250	V
Supply Frequency	F	49	51	Hz
power consumption	C		55	W
Ambient Operating Temperature	Tw	0	50	OC
Storage Temperature	Ts	-25	55	OC
Operating Humidity	H	10	75	%

Note: Support both 110V and 220V supply voltage standards, but please let us know which one do you

need when you release order.

Specifications

Table 2 – Technical Specifications

Parameter	Symbol	Description	Unit	Remark
Mechanical dimension
Height	H	42	mm	About 1U
Width	W	434	mm	About 17”
Depth	D	340	mm
Input SFP
Type	-	LC
Connector	-	SFP or RJ45
Max. throughput	-	1.25	Gbps
Compatible protocol	-	IP V4, UDP, RTP,ARP
Multiplexing and scrambling
Input channels		512 UDP
Max PID		512 PID per freq
Scrambling channels		4
Function		PID remapping
RF Output
Impedance	-	75	Ω
Output channels		16
Connector	-	BNC	NA
Frequency	-	48~863	MHz
Output level	-	>100	dBuV	Adjustable
Modulation Specification
Modulation scheme		16~256QAM
Standard		ITU-T J.83 Annex A,C
Symbol Rate	SR	1~7	Mbaud
Bandwidth	BW	1.15~8.05	MHz
Effective output bit rate		≤51.6	Mbps	SR=7Mbaud, 256QAM
Modulation Error Rate	MER	≥40	dB	After equalizer, 64QAM
Bit Error Rate	BER	≥9x10E-9		After FEC, 64QAM
Carrier to Noise	C/N	≥45	dB
Management for IPQAM model
Type		10/100BASE-T
Connector		RJ45
Max. bitrate		125	Mbps

Panel Diagram

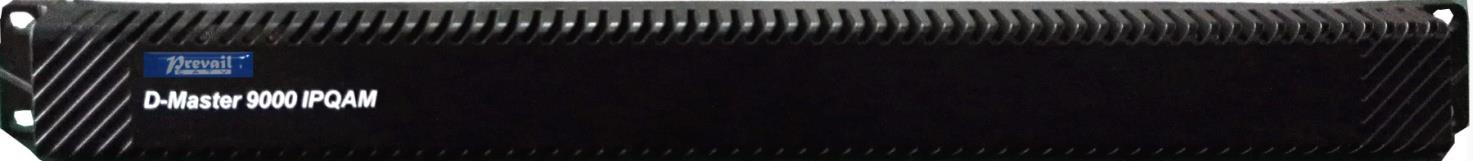

Front panel:

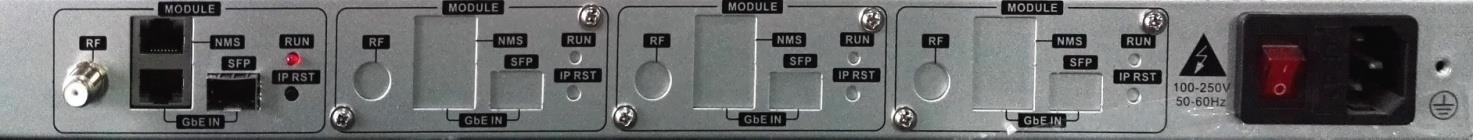

Rear panel:

Ordering Information

Part Number	Description
D-Master 9016B	One module, QAM Modulator, RF output support 16~256QAM modes, up to 16 frequencies, output frequency range is 48~863MHz ，SR=1~7Mbaud
D-Master 9032B	Two module, QAM Modulator, RF output support 16~256QAM modes, up to 16*2 frequencies, output frequency range is 48~863MHz ，SR=1~7Mbaud
D-Master 9048B	Three module, QAM Modulator, RF output support 16~256QAM modes, up to 16*3 frequencies, output frequency range is 48~863MHz ，SR=1~7Mbaud
D-Master 9064B	Four module, QAM Modulator, RF output support 16~256QAM modes, up to 16*4 frequencies, output frequency range is 48~863MHz ，SR=1~7Mbaud
