IP to ASI Gateway:WDG-5108

WDG-5108 IP to ASI gateway is an ASI and IP converter device that is designed and manufactured by Hangzhou Prevail Company according to DVB and Ethernet-related standards. WDG-5108 has a total of eight ASI outputs, Max. The bitrates of each port are up to 108Mbps. WDG-5108 has one “TS over IP” 10/100/1000Mbps auto-negotiation Ethernet interface as a data port and one 100Base-T as a control port. WDG-5108 supports IP unicast or multicast input, 1~7 TS packets could be put in each IP packet. WDG-5108 can be controlled or confabulated easily by WEB through the connection with that 100Base-T fast Ethernet port on the device.

send inquiry

Back List

Features

● One of IP input, 8 ASI output

● Max. bitrate up to 108Mbps for each output channel, automatic detection for both 188 and 204-byte input format

● Support 512 UDP input

● Support TS(SPTS/MPTS) re-multiplexing

● 10/100/1000BASE-T Gigabit Ethernet with Auto-negotiation bit rate

● Based on UDP packet and IPv4 protocol, support 1~7 TS packet in each IP package

● Low latency (less than 10ms), Max. throughput of 214Mbps

● Support PSI/SI editing and remapping PID

● IP unicast or multicast compliant

● Jitter elimination（10~900ms）

● 10/100BASE-T Ethernet control port.

Application

● DVB TS to IP conversion in digital TV contribution or distribution world

Compatible

● EN 50083-9

● ETSI TR 101 154

● ETSI TR 101 891

● EN 300 429

● ITU-T J.83A

● IEEE-802.3

Recommended Operating Conditions

Stress in excess of the maximum absolute ratings can cause permanent damage to the device (See Table 1)

Table 1 – Recommended Operating Conditions

Parameter	Symbol	Min.	Max.	Unit
Supply Voltage Note	V	90	250	V
Supply Frequency	F	49	51	Hz
Power consumption	C		25	W
Ambient Operating Temperature	Tw	0	50	°C
Storage Temperature	Ts	-25	55	°C
Operating Humidity	H	10	75	%

Note: Support both 110V and 220V supply voltage standards, but please let us know which one do you need when you release order.

Specifications

Table 2 – Technical Specifications

Parameter	Symbol	Description	Unit	Remark
Mechanical dimension
Height	H	42	mm	About 1U
Width	W	434	mm	About 17”
Depth	D	340	mm
ASI OUTPUT
Number of ASI input	-	8	pcs
Impedance	-	75	W
Connector	-	BNC	NA
Maximum bit rate	-	108	Mbps
TS packet format	-	188 or 204	Byte	Automatic detection
Transmission format	-	Data packet or data burst	NA
IP INPUT(DATA)
Type		10/100/1000BASE-T		Auto-negotiation
Connector		RJ45
Max. bitrate		1.25	Gbps
Max. throughput		214	Mbps
Compatible protocol		IP V4, UDP, ARP
CONTROL PORT
Type		10/100BASE-T
Connector		RJ45
Max. bitrate		125	Mbps

Panel Diagram

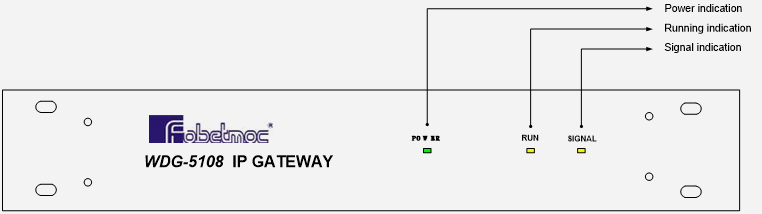

Front panel:

Rear panel:

Ordering Information

P/N	Description
WDG-5108	IP to ASI convertor, 8 ASI outputs, gigabit Ethernet input with 10/100/1000BASE-T RJ45 connector, compatible with UDP, IPv4 protocol, fast Ethernet control port with NMS
