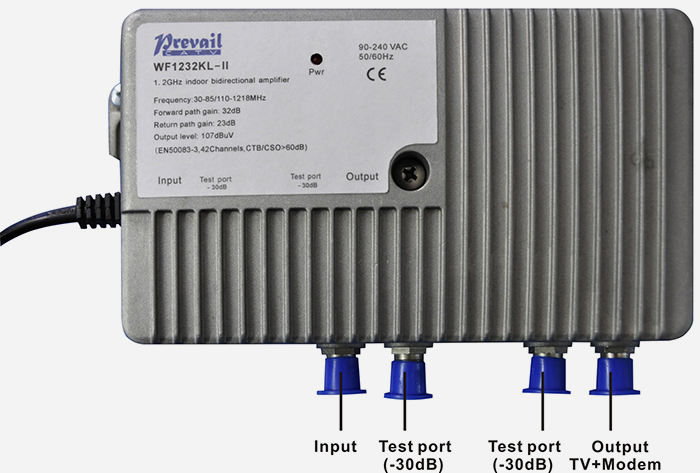

WF-1232KL-II Bi-directional Amplifier

WF-1232KL-II building amplifier is suitable for HFC bidirectional network, which mainly used to amplify CATV image and digital signals. It is a remote terminal in the CATV transmission system with reasonable circuit, scientific structure and excellent performance index.

Back List
PREV:No previous product
NEXT:WB1200KLED Ultra-thin Modular Bi-directional Amplifier
  • Hardware specifications

  • Performance Characteristics

    ● Broadband, the highest frequency can be 1218MHz.

    ● Full GaAs MMIC amplifiers.

    ● Plug-in equalizer and attenuator. External RF test port.

    ● Aluminum die-cast housing, the thickness of the whole machine is only 55mm.

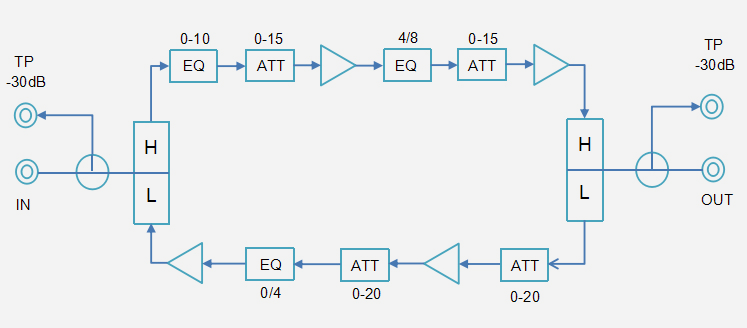

    Structure Diagram


    Technical Parameter

    Item Unit Parameter
    Downstream
    Frequency range MHz 110 -1218
    Minimum gain dB 32
    Flatness in Band dB ±1
    Return loss dB ＞16 @110MHz, -1.5 dB/octave, Min>11
    Noise figure dB ＜7
    Input ATT dB 0-15
    Input EQ dB 0-10
    Interstage ATT dB 0-15
    Interstage EQ dB 4/8
    CNR dB ≥52 European standard 41CH analog signal, input: 75dBuV,
    Output: 107dBuV@1218MHz,
    Interstage EQ: 8dB
    CTB dB ≥60
    CSO dB ≥60
    MER dB ≥40 110-862 MHz in full configuration, QAM256 digital signal
    Input: 75dBuV, Output: 104dBuV@1218MHz
    Interstage ATT: 3Db, interstage EQ: 8dB
    BER 1.00E-09
    Upstream
    Frequency range MHz 30-85
    Gain dB ≥23
    Flatness in Band dB ±1
    Return loss dB ＞15
    Noise figure dB ＜6
    Input ATT dB 0-20
    Interstage ATT dB 0-20
    Interstage EQ dB 0/4
    MER dB ≥38 European standard 41CH analog signal, EQ: 8 dB
    Output level 110 dBuV@1218MHz
    BER 1.00E-09
    NPR dynamic range dB ＞30 @36 dB CNIR
    Others
    Waterproof level IP41
    Supply voltage V 90-240
    Test port dB -30±2
    F connector Inch, female
    EMC EN50083-2-2006  table10-classA
    Impedance Ω 75
    Power consumption W ＜18
    Surge KV 4 (RF port)
    ESD KV 2 (RF port)
    Operating temperature ℃ -20～+50
    Dimension mm 200(L)×115(W)×55(H)

    Structure Diagram

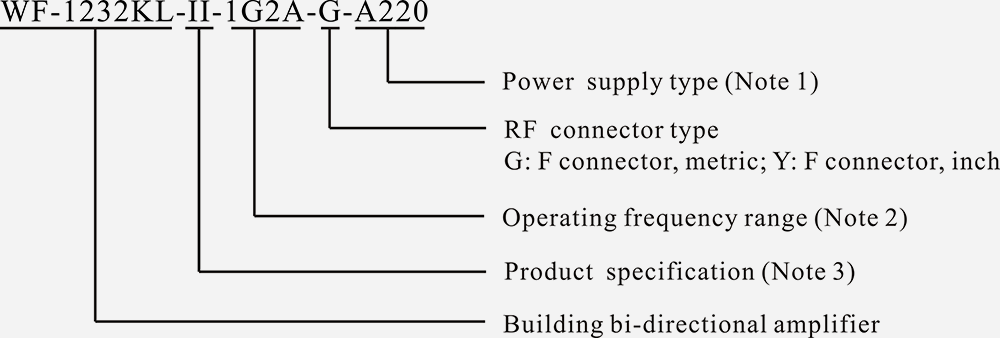

    Naming Specification

    Note 1: A220: AC 220V power supply.

    Note 2: Refer to "Duplex Filter Frequency Split Table".

    Note 3: The operating frequency of this model is 1218MHz, with an upstream gain 23dB and downstream gain 32dB. Other requirements please indicate in the order.
