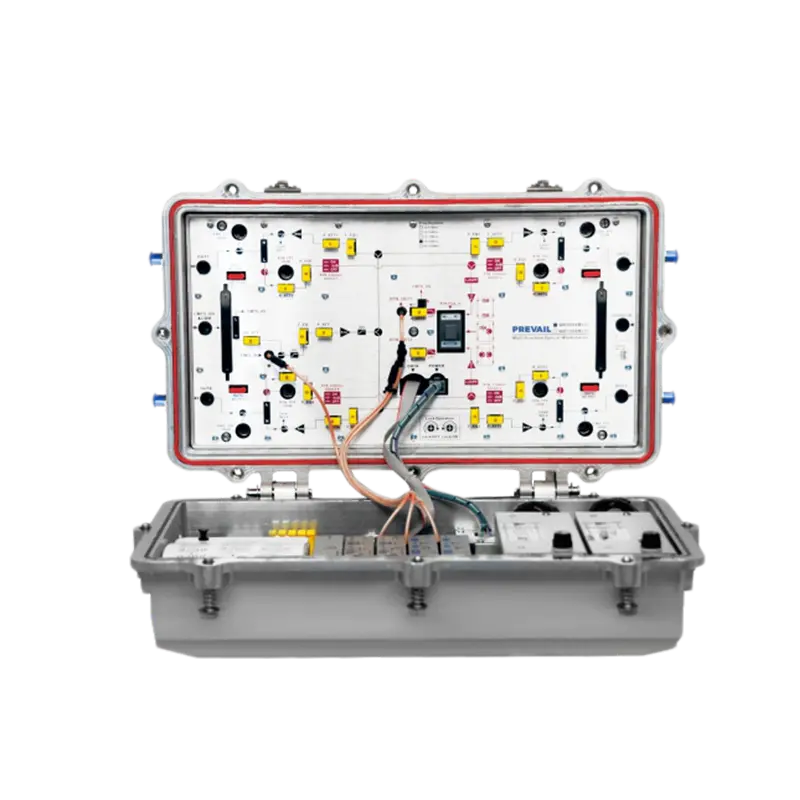

Optical Node: WR-1004N-MLD-GD

WR-1004N-MLD-GD outdoor optical node is a four-way independent output and high level optical node, which applies to 1GHz CATV bidirectional HFC network, optional RFOG burst mode return path components. It can be equipped with 2 forward path optical receiving modules, 2 return path optical transmitting modules, 1 Ethernet transponder module and 2 power modules at most.

send inquiry Back List

PREV:No previous product
NEXT:Outdoor 1550nm High Power Optical Fiber Amplifier: WE-1550-YZ-YW

Hardware specifications

Feature

● Support optical AGC, LED screen status display.

● Plug-in type attenuator and equalizer; four-way GaAs power-doubler amplify output.

● RFOG burst mode is optional in the return path.

● Reserved external C-CMTS RF signal interface.

● Modular cast aluminum waterproof shell. Support Ethernet transponder.

Specifications

● 1GHz operating frequency, multi-frequency division optional.

● Optical AGC Range: -8/-7/-6/-5 ~ +2dBm (adjustable).

● Max Output Level: ≥112dBμV.

● C/N: ≥51dB @-1dBm, C/CTB: ≥65dB, C/CSO: ≥60dB .

● Upstream Optical Output: 1310±10nm, 1 mW.

● Upstream RF Input Range: 75 ~ 85dBμV.

● NPR Dynamic Range: ≥15 dB(DFB), NPR≥ 30dB.

● Power Consumption: ≤ 42W.

● Operating Voltage: AC 135V ~ 250V or AC 35V ~ 90V .

● Dimension: 460mm(L) X 282mm(W) X 175mm(H).
