WA12-A Bi-directional Amplifier

WA12-A bi-directional amplifier, which supports DOCSIS 3.1 and different frequency splitting, is suitable for 1.22G HFC bidirectional network. Advanced GaAs technology effectively improves line distortion and noise figure for great product performance improvement. Specifically designed for both indoor and outdoor rack-mounted applications with waterproof and surge withstand on the F connector. WA12-A has reasonable circuit, scientific structure and excellent performance index.

send inquiry Back List

PREV:WB1200KLED Ultra-thin Modular Bi-directional Amplifier
NEXT:No next product

Hardware specifications

Performance Characteristics

● Wide bandwidth, maximum frequency is up to 1.22G.

● Full GaAs MMIC amplifying components.

● 3dB noise figure.

● LED power indicator.

● Support remote and local DC power supply.

● DC15V power adapter.

● Low power consumption design.

● Aluminum die-cast housing.

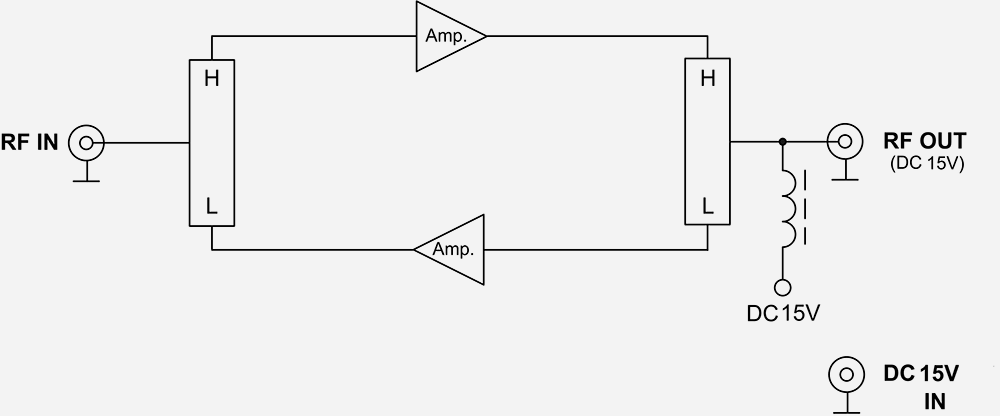

Block Diagram

Technical Parameter

Item	Unit	Parameter	Remark
Downstream
Frequency range	MHz	54/85/102 -1220
Minimum gain	dB	15±1
Flatness in band	dB	±0.75
Return loss	dB	<-16
Noise figure	dB	<3
CTB	dB	>70	Input level 10dBmV/ch, 84ch PAL-D
CSO	dB	>62
Upstream
Frequency range	MHz	5-42/65/85
Gain	dB	11 ±1
Flatness in band	dB	±0.75
Return loss	dB	<-16
Noise figure	dB	<8
General
Supply voltage	V	DC15
Hum	dB	>70
Impedance	Ω	75
Power consumption	mA	<280	@ DC IN 15V
Surge	KV	6
ESD	KV	2
Operating temperature	℃	-40～+60
Dimension	mm	112(L)×95.6(W)×28.5(H) (With F connector)

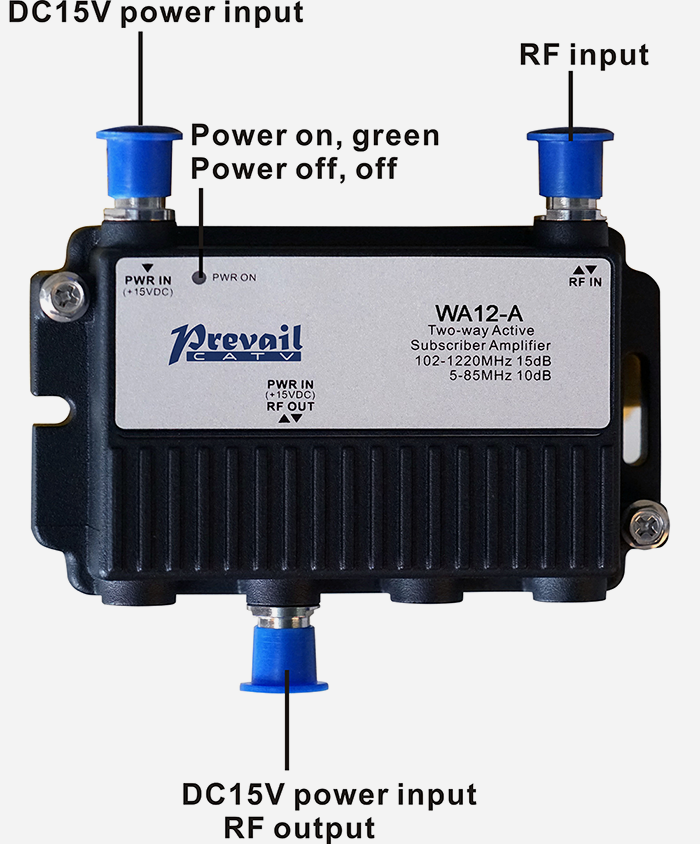

Structure Diagram
