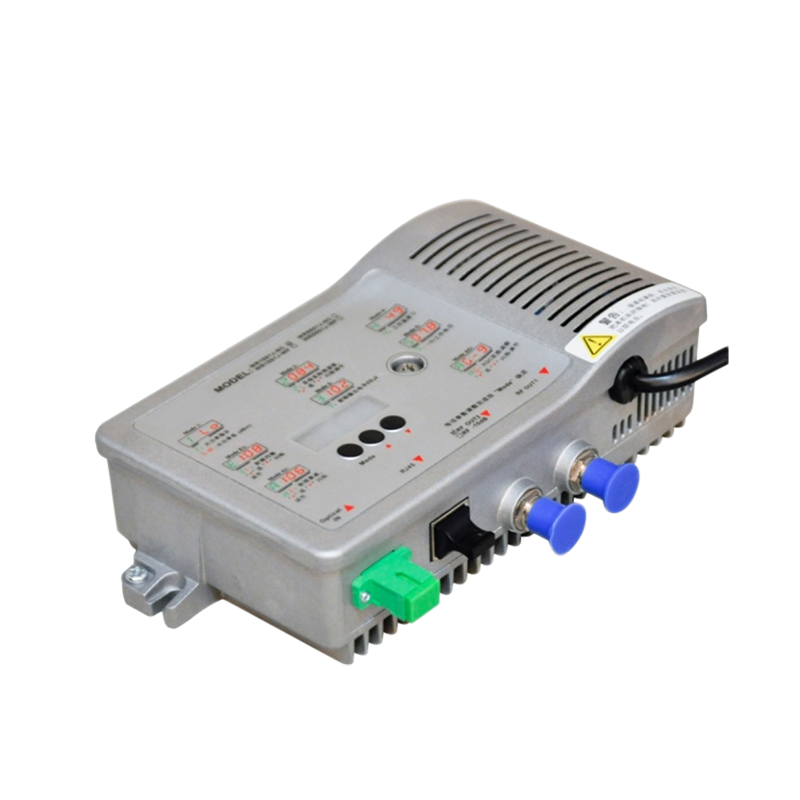

FTTB Optical Receiver: WR-1001-J

WR1001J 1GHz FTTB optical receiver, with wide range receiving optical power, high output level and low power consumption. Built-in single chip microcomputer and embedded program, can monitor various parameters in the machine, cooperate with key operation to realize electric control EQ and ATT adjustment.

send inquiry

Back List

There are three models optional:

NC	Operating wavelength: 1100 ~ 1620nm.
WF	Built-in optical filter, operating wavelength:1550nm.
WD	Built-in WDM, operating wavelength:1550nm，
WD	PON wavelength 1310/1490nm looping out.

Features

● With optical AGC function, range adjustable.

● Full MMIC amplification circuit, low power consumption.

● Electric control ATT and EQ，0~15dB。

● Can be equipped with Ethernet transponder, support remote network management (optional);

● Metal shell, good heat dissipation and durability.

● Built-in high reliability power supply.

● Various outputs are optional.

● Can be equipped with WDM, PON wavelength looping out. (optional).

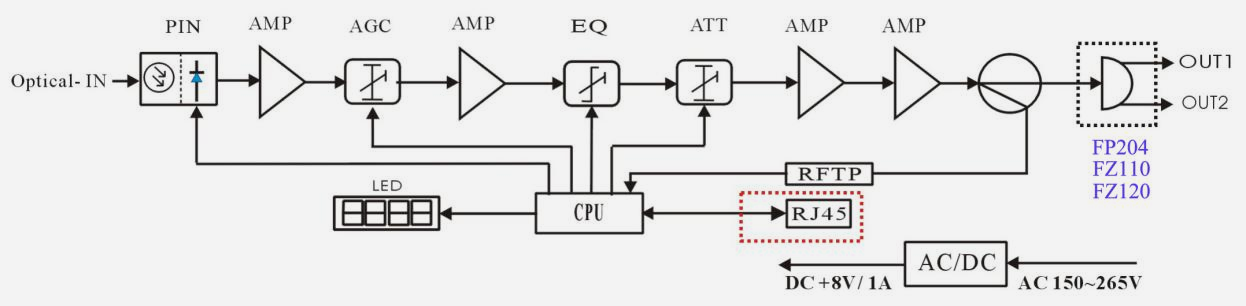

Block Diagram

Note: The part in dashed box is optional.

Technique Parameter

Item	Unit	Technical Parameters
Optical Parameters
Receiving Optical Power	dBm	-9 ~ +2
Optical AGC range	dBm	(-9dBm/-8dBm/-7dBm/-6dBm/-5dBm/-4dBm) ~ (+2dBm) adjustable
Optical Return Loss	dB	>45
Optical Receiving Wavelength	nm	1100 ~ 1600
Optical Connector Type		SC/APC or specified by the user
Fiber Type		Single mode
RF Parameters
Frequency Range	MHz	45 ~860/1003
Flatness in Band	dB	±0.75
Rated Output Level	dBμV	≥ 108	FZ110output
		≥ 104	FP204output
Max Output Level	dBμV	≥ 108	FZ110output, -9 ~ +2dBm
Output Return Loss	dB	≥16
Output Impedance	Ω	75
Electrical control EQ range	dB	0～15
Electrical control ATT range	dB	0～15
C/N	dB	≥ 51	59PAL-D+QAM256, -1dBm optical receiving，FZ110 108dBuV output，EQ 8dB
C/CTB	dB	≥ 60
C/CSO	dB	≥ 60
General Characteristics
Power Voltage	V	AC（150~265）V or DC 12V/1A External power supply
Operating Temperature	℃	-40~60
Power Consumption	VA	≤ 8
Dimension	mm	190（L）* 110（W）* 52（H）

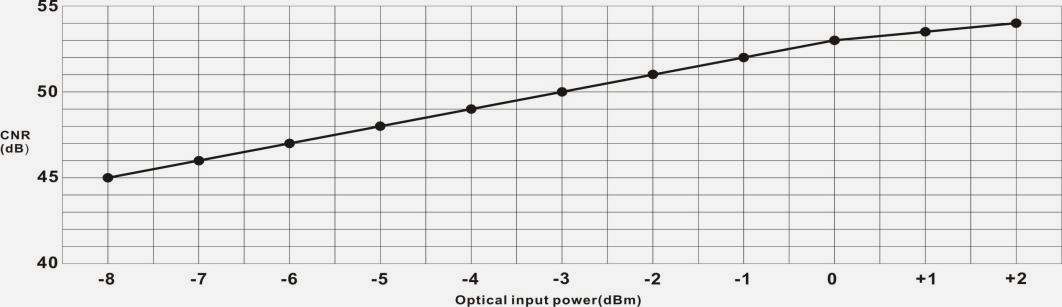

Relation Table of Input Optical Power and CNR

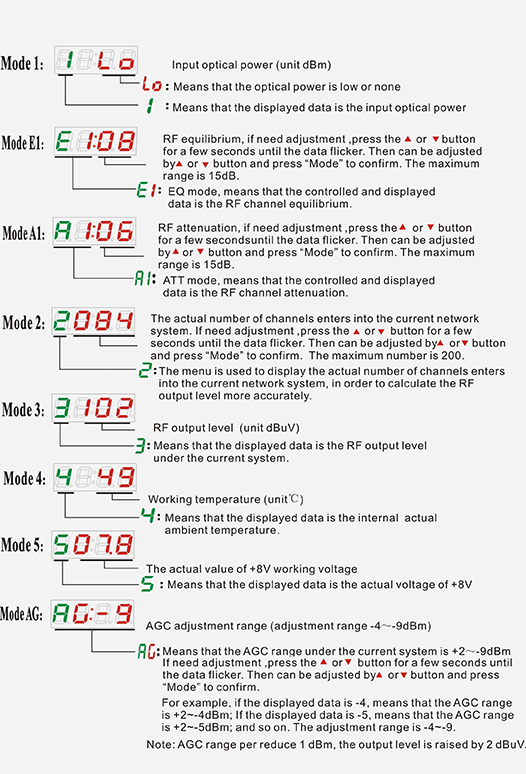

Function Display and Operating Instruction

Mode: Mode selection button, total eight modes. Press the mode selection button to enter the corresponding status display, eight modes to cycle. The following is the detailed instructions：
