XPON ONU Stick: WGP3200-M

WGP3200-M is an SFP interface type ONU, compact and exquisite, plug and play, with good heat dissipation and shielding effects. It can be hot plugged into SFP slots of switches, cameras, and other devices to work, The entire device to function can be as an ONT or even MDU, allowing it to be directly connected to GPON or EPON optical networks, replacing external ONUs and improving system integration. It supports asymmetric uplink and downlink GPON and symmetric uplink and downlink EPON rates. It works with OLT office equipment to provide users with Ethernet services and IP integrated services with good QoS guarantee and flexible bandwidth allocation.

  • Hardware specifications
  • Performance Features:

    ● Single fiber bi-directional data links GPON ONU and EPON ONU applications with XPON MAC function.

    ● SC/UPC receptacle SFP with PON ONU MAC inside, "Plug-and-play" via auto-discovery and configuration.

    ● 1310nm DFB burst mode transmitter, 1490nm TIA continuous mode receiver.

    ● Single 3.3V power supply.

    ● Digital diagnostic monitor interface compatible with SFF-8472.

    ● SFP MSA compliance.

    ● Low EMI and excellent ESD protection.

    ● Complies with SFP Multi-Source Agreement (MSA) SFF-8074i.

    ● Complies with ITUT-T G984.2, G.984.2 Amendment1.

    ● Complies with ITUT G.988 ONU management and control interface (OMCl) specification.

    ● Class I laser safety standard IEC-60825 compliant.

    ● RoHS compliance.

    ● XPON stick compatible with GPON and EPON system.

    ● Complies with IEEE802.3ah.

    Applications:

    ● Passive Optical Networks (PON)

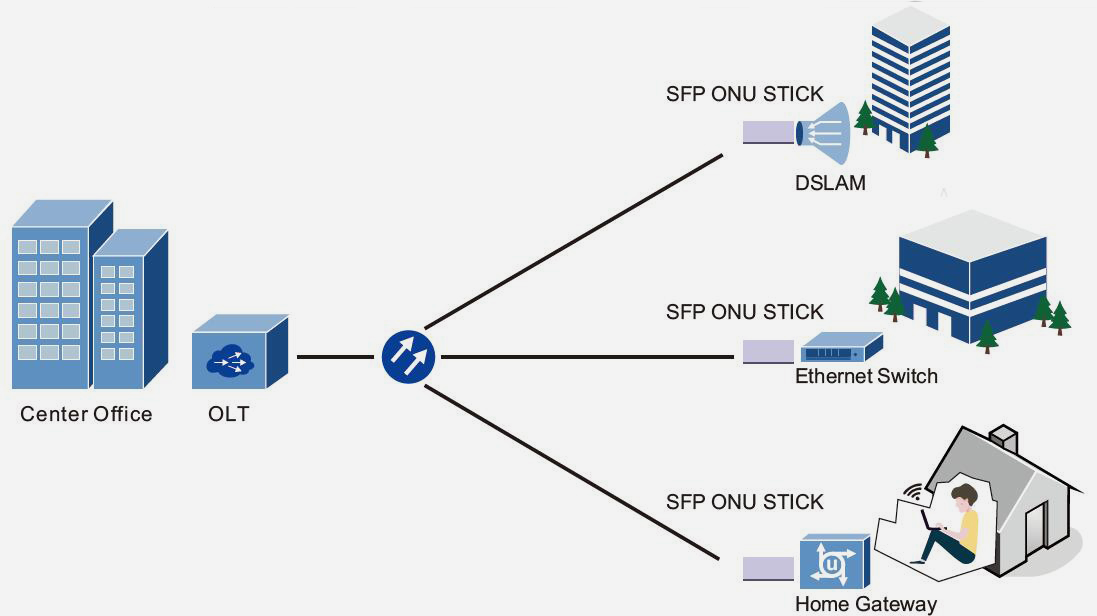

    ● The product is an MSA-compliant SFP that incorporates not just the optics for an ONU. but all of the electronics need as well. It is a "PON on a Stick" that an entire FTTH ONU in a slightly oversized SFP. It can be plugged into networking equipment. According to the different fiber environments and distance requirements, it allows to customize the data interfaces on a switch, router, etc.


    Technical Specifications:

    Recommended Operating Condition
    Parameter Unit Min. Typ. Max. Notes
    Power Supply Voltage V 3.13 3.3 3.47
    Power Consumption W - 2.1 2.5 Max value under high temp environment
    Case Operating Temperature 0 70
    -40 85
    Operating Humidity Range % 5 95
    Data Rate Gbit/s GPON mode    TX: 1.244/RX: 2.488
    EPON mode    TX: 1.25/RX: 1.25

    Transmitter Optical Characteristics
    Parameter Unit Min. Typ. Max. Notes
    Optical Center Wavelength nm 1290 1310 1330
    Spectral Width nm 1
    Side Mode Suppression Ratio dB 30
    Average Launch Optical Power dBm 0.5 4 Launched into SMF fiber
    Burst Off Average Output Power dBm -45
    Extinction Ratio dB 10
    Rise/Fall time(20%-80%) ns 0.26 Unfiltered PRBS223 [email protected]
    RIN15OMA dB/Hz -115
    Optial Return Loss Tolerance dB -15
    Transmitter Reflectance dB -10
    TX and Dispersion Penality dB 1 Transmit on 20km SMF
    Optical Eye Diagram Compliant with ITU-T G984.2 PRBS223 [email protected]

    Transmitter Electrical Characteristics
    Parameter Unit Min. Typ. Max. Notes
    Data Input Differential Swing mV 300 1800 CML input,AC coupled
    Input Differential Impedance 90 100 110
    TxDisable Control voltage - Low V 0 0.8
    TxDisable Voltage - High V 2 Vcc
    TX Fault Alarm Voltage - Low V 0 0.4
    TX Fault Alarm Voltage - High V 2.4 Vcc

    Receiver Optical Characteristics
    Parameter Unit Min. Typ. Max. Notes
    Operating Wavelength nm 1480 1490 1500
    Sensitivity dBm -28 PRBS223- 1@2488Mbps
    Saturation Optical Power dBm -3
    Loss of Signal De-Assert dBm -29
    Loss of Signal Assert dBm -40
    Signal-Detected Hysteresis dBm 0.5 6
    Receiver Reflectance dB -12 λ=1490nm
    WDM Filter Isolation dB 38 λ=1550nm
    dB 35 λ=1650nm

    Receiver Electrical Characteristics
    Parameter Unit Min. Typ. Max. Notes
    Data Output Differential Swing mV 300 1200 CML output,AC coupled
    Loss of Signal - Low V 0 0.4
    Loss of Signal - High V 2.4 Vcc

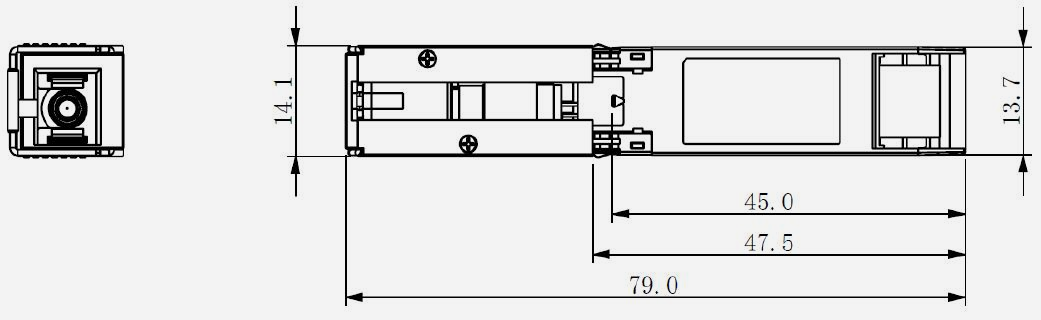

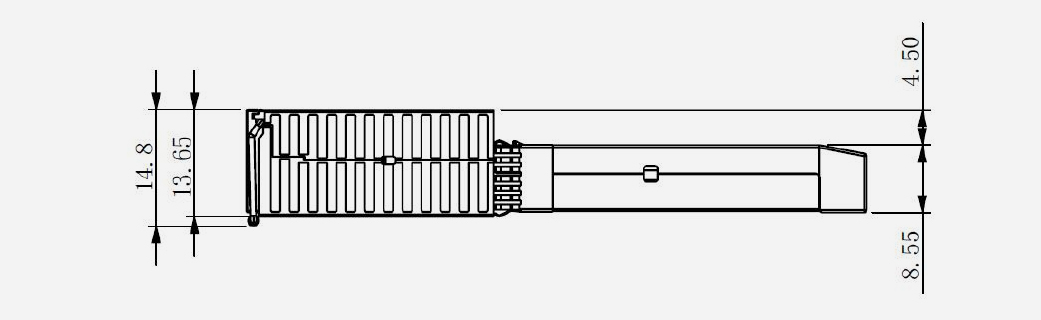

    Mechanical dimension:



    Notes:
    1. Precautions for operation: This device is susceptible to damage caused by electrostatic discharge (ESD). It is strongly recommended to use in a static free environment. Follow the correct ESD program guidelines.
    2. Laser safety: The radiation emitted by laser equipment may harm to the human eyes. Directly or indirectly contact with the eyes should be avoided.
