WR-1002 Optical Receiver

WR-1002 field type optical receiver is the latest 1GHz optical receiver launched by our company, which has the features of wide range of received optical power, high output level, low power consumption of the whole machine, compact structure, easy installation, and it is the ideal model for building high-performance NGB network.

send inquiry

Back List

Performance characteristics

● Using optical AGC technology, optical AGC control range: +2dBm ～ -9/-8/-7dBm adjustable.

● Operating frequency 1GHz, using high-performance gallium arsenide amplifier module, the highest output 116dBuv.

● Equalisation and attenuation both adopt professional ESC circuit, more accurate control and more convenient operation.

● Optional network management transponder, support remote network management.

● Optical output and network management interface can be selected as external or internal.

● One independent or two distribution outputs can be selected through the insert.

● Support 220V or 60V power supply.

● Wild waterproof metal case.

Technical parameters

	Project	unit	Technical Parameters
Optics	Received optical power	dBm	-9 ~ +2
	Optical AGC control range	dBm	+2 ~ -9/-8/-7 (adjustable)
	Light reflection loss	dB	>45
	Light receiving wavelength	nm	1100 ~ 1600
	Optical connector type		SC/APC, FC/APC or user specified
	Fiber type		single mode
Radio frequency	Frequency Range	MHz	45/87~862/1003
	In-band flatness	dB	±0.75
	Output reflection loss	dB	≥16
	Electronically controlled equalization range	dB	0～15
	Electronically controlled attenuation range	dB	0～15
	Nominal output level	dBμV	≥ 108
	maximum output level	dBμV	≥ 112 (-9 ~ +2dBm optical power reception)
			≥ 116 (-7 ~ +2dBm optical power reception)
	C/N	dB	≥ 51	-1dBm reception, EQ8dB
				Output level 108 dBμV (FZ110)
	C/CTB	dB	≥ 67
	C/CSO	dB	≥ 62
Other	voltage	IN	AC（150~265）V
			AND (35~90) V
	Operating temperature	℃	-40~60
	Power consumption	AND	≤14
	Dimensions	mm	220（L）* 205（W）* 65（H）

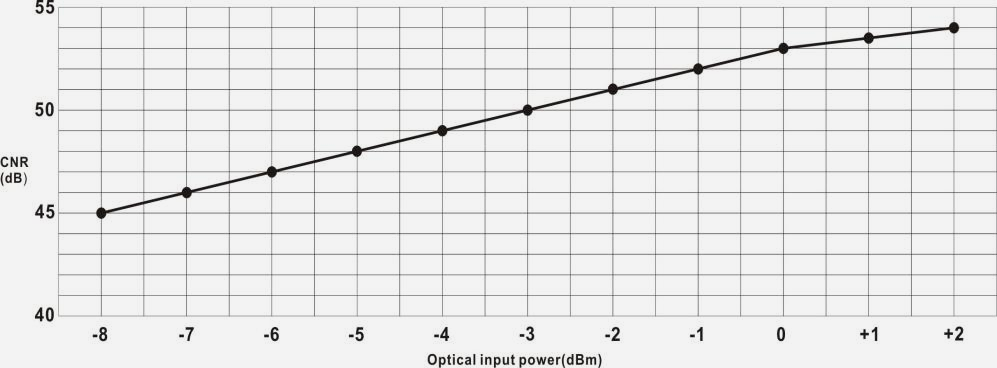

Input optical power versus CNR

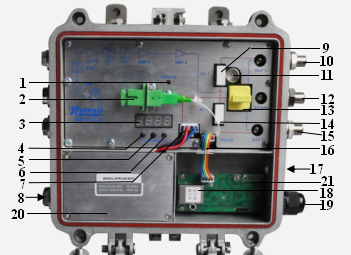

Product Structure Description

	1. Work indicator light	2. Optical receiving port (external optional)
	3. LED digital display tube	4. Confirm key
	5. Scroll down key	6. Up key
	7. Power interface	8. AC220V input port
	9. AC60V overcurrent plug port	10. Output port 1
	11. -20dB test port	12. AC60V power feed port
	13. FZ110 or FP204	14. AC60V overcurrent plug port
	15. Output 2	16. Transponder wiring
	17. Optical fiber access port	18. RJ45 port (external optional)
	19. Network cable import	20. Switching power supply
	21. Transponder

Functional display and operating instructions

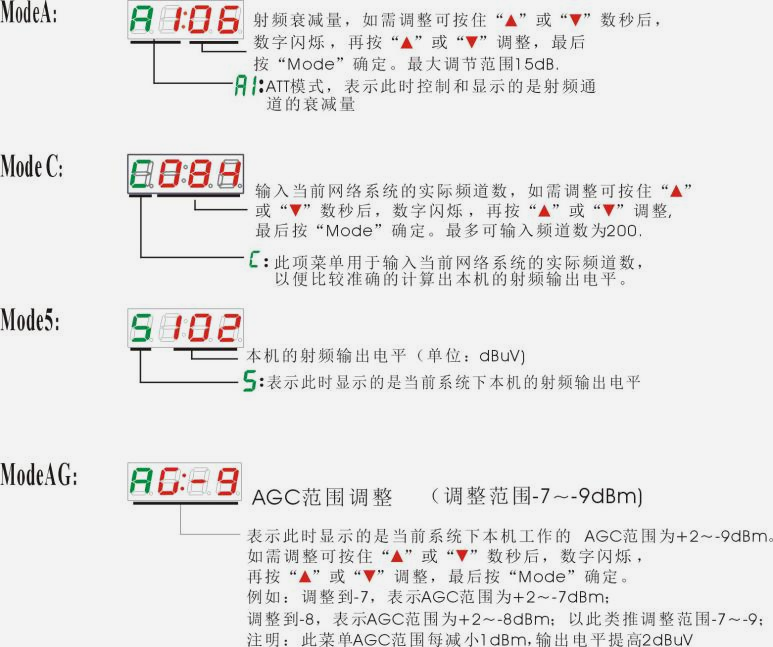

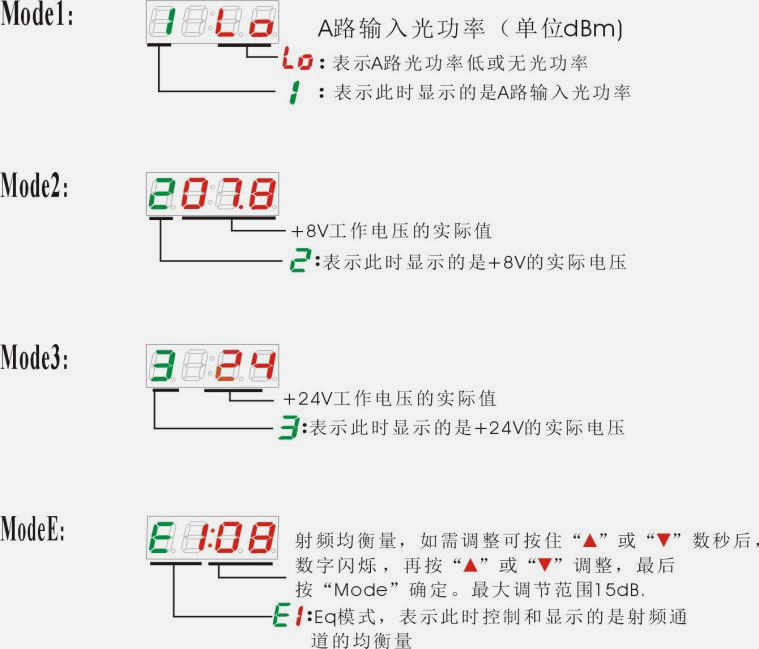

Mode: working mode selection button, a total of twelve working modes, press the Mode control mode selection button, you can enter the corresponding state display, twelve modes cycle switching.

The following is a detailed illustration of the operating instructions:
