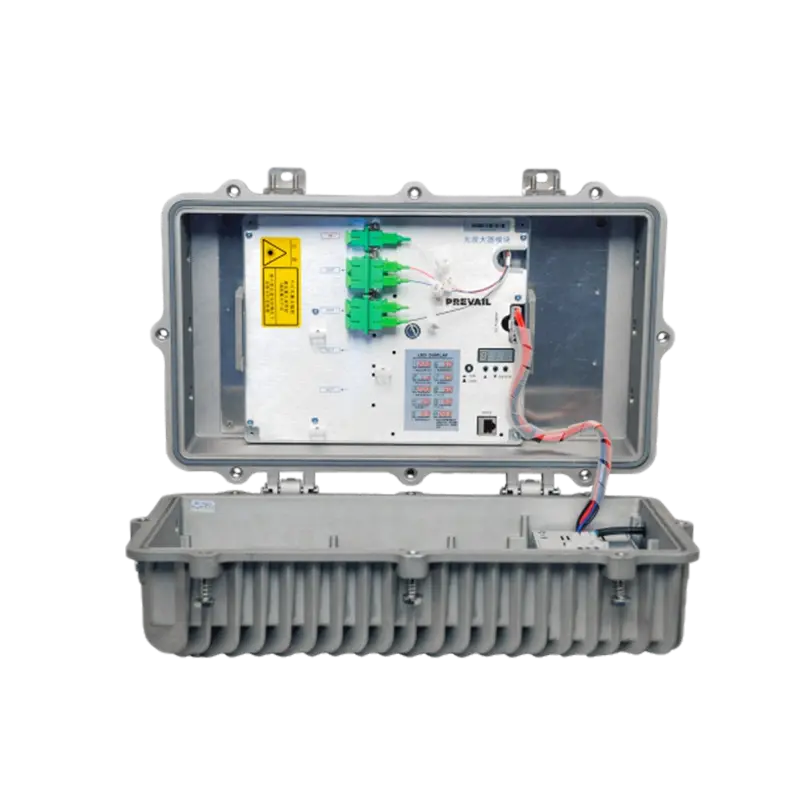

Outdoor 1550nm High Power Optical Fiber Amplifier: WE-1550-YZ-YW

On the basis of WE-1550-YZ optical fiber amplifier, an outdoor type waterproof casing is adopted to meet the needs of outdoor use.

send inquiry Back List

PREV:Optical Node: WR-1004N-MLD-GD
NEXT:No next product

Hardware specifications

Feature

● Adopt Er-Yb co-doped double clad fiber technology and low noise pump laser output.

● 4, 8, and 16 output ports optional, CWDM optional.

● Low noise figure: less than 6dB at 0 dBm input.

● Standard Ethernet responder, supporting SNMP network management.

● Real time monitoring of operating parameters such as optical power and pump parameters.

Specifications

● Input Optical Power Range: -5 dBm~+10 dBm.

● Input Optical Wavelength Range: 1545nm~1565nm.

● Noise Figure: < 5.5 dB.

● Total Output Power: +25 dBm~+33 dBm.

● C/N : ≥ 50dB ; C/CTB : ≥ 63dB ; C/CSO : ≥ 63 dB .

● Power Consumption: ≤70W.

● Operating Temperature: -30℃~+55℃.

● Operating Voltage: AC90V~265V (50/60 Hz).

● Dimensions: 460mm: (L)X 270mm(W)X 170mm(H).

Note 1: The testing conditions for link indicators are carried out in accordance with the "GY/T 184-2002 Technical Requirements and Measurement Methods of Analog Optic Fiber Amplifier in CATV Systems"

Note 2: For more detailed product introduction and indicator parameters, please refer to the product manual.
