The WOS4000 optical communication platform is the brand-new 3rd generation product launched by Prevail based on professional experience in development, manufacturing, and sales of CATV transmission equipment over 20 years. It provides powerful function and flexible configuration in HFC optical data transmission solutions. The standard 4RU metal rack contains sixteen compact slots and each can be installed any functional module able to perform hot plug. Built-in dual-power hot backup, efficient fan cooling and appropriate redundant backup of functional modules contribute to carrier-class reliability. The CMM management unit provides a friendly HMI with LCD displays the operating status of each module in real time and convenient parameter setting. The network management software conforming to the SNMP protocol is offered to achieve remote management and automatic monitoring.
send inquiryPerformance Characteristics:
● Compact slots to reduce space occupation.
● Support hot swap, plug and play.
● Advanced heat dissipation for excellent thermal stability.
● Dual power hot backup and multiple power supply options.
● LED status display in the front panel.
● All electronic control, no accessories.
● Powerful network management software.
The standard configuration of WOS4000 rack includes:
● One metal chassis with 16 plug-in slots. 4U total in height.
● Two power supply modules. (AC220V or DC48V optional).
● One CMM management unit. LCD display and operation buttons.
● One network transponder with an RS232 interface and a LAN interface.
● Seven on site replaceable fans.
Under the standard configuration, the display screen shows as follows after power on: P1, P2 (for power supply modules) and M (for CMM management unit) are highlighted, i.e. the 3 modules are online.
Operation Instructions for the Display Menu
▲▼Up and down keys: Press buttons to move the cursor up, down, left and right. The selected module or menu is highlighted.
Enter key: Press the Enter key to enter the submenu or parameter settings. Press Enter to confirm the setting.
ESC key: Exit or return to the previous menu.
1. Submenu Description of M (CMM management unit)
After entering the submenu, the following parameters can be seen:
FanNO.1 ON |
Control of Fan 1, ON/OFF can be set |
FanNO.2 ON | Control of Fan 2, ON/OFF can be set |
FanNO.3 ON | Control of Fan 3, ON/OFF can be set |
FanNO.4 ON | Control of Fan 4, ON/OFF can be set |
FanNO.5 ON | Control of Fan 5, ON/OFF can be set |
FanNO.6 ON | Control of Fan 6, ON/OFF can be set |
FanNO.7 ON | Control of Fan 7, ON/OFF can be set |
Key Sound ON |
Key sound control, ON/OFF can be set |
IP Address |
IP address setting |
Gateway |
Gateway setting |
Net Mask |
Subnet mask setting |
Trap Addr1/2 |
Trap1/Trap2 address setting |
NTP Addr1/2 |
NTP1/NTP2 address setting |
UTC +0:00 |
Universal Time Coordinated |
MAC Addr |
MAC address setting |
DevTemp℃ |
Internal temperature |
SN |
Serial number |
Version |
Version number |
WorkTime |
Total operating hours of the CMM unit. |
2. Submenu Description of P (power supply module)
After entering the submenu, the following parameters can be seen:
+5V |
+5V actual voltage |
-5V |
-5V actual voltage |
+24V |
+24V actual voltage |
FanOn Temp℃ |
Automatic fan on temperature inside the module, can be set |
DevTemp ℃ |
Real-time temperature inside the module |
SN |
Serial number |
Version |
Version number |
Work Time |
Total operating time of the power supply module |
Performance Specifications:
Item | Parameter |
Dimension | 483 x 417 x 178mm, W (including the handles in both sides) x D x H (4U in height) |
Weight | 12kg (including the rack, two power supply modules and CMM management unit) |
AC220V input voltage | AC100V~AC260V50Hz±10% |
DC48V input voltage | DC 40V - 60V |
+24V output | 14A, 340W, ripple: <100mV Vpp |
-5V output | 5A , 25W, ripple: <50mV Vpp |
Conversion efficiency | >85% |
Power factor | >0.9 |
Operating temperature | -25℃~55℃ |
Storage temperature | -30℃~70℃ |
Operating humidity | 95%max, non-condensing |
Operating atmospheric pressure | 66kPa~106kPa |
Static | 8KV |
Surge (1.2/50uS) | 4KV (peak) with varistor. When doing surge tests, the power supply is without overvoltage protection |
Impact voltage withstand | 6kV input to output, positive and negative 10 times each |
Safeguard | Protection for input overvoltage, overcurrent, output overload and short circuit |

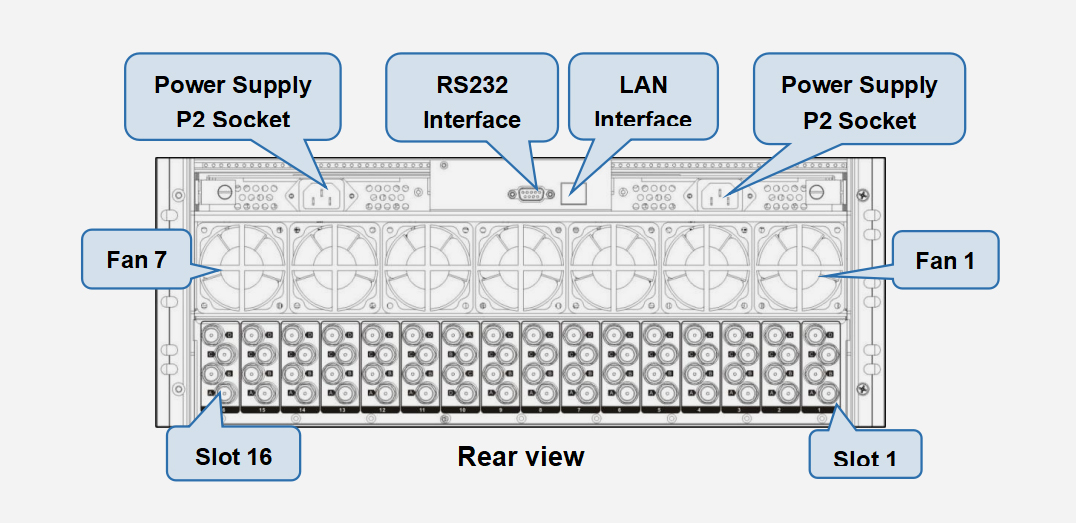

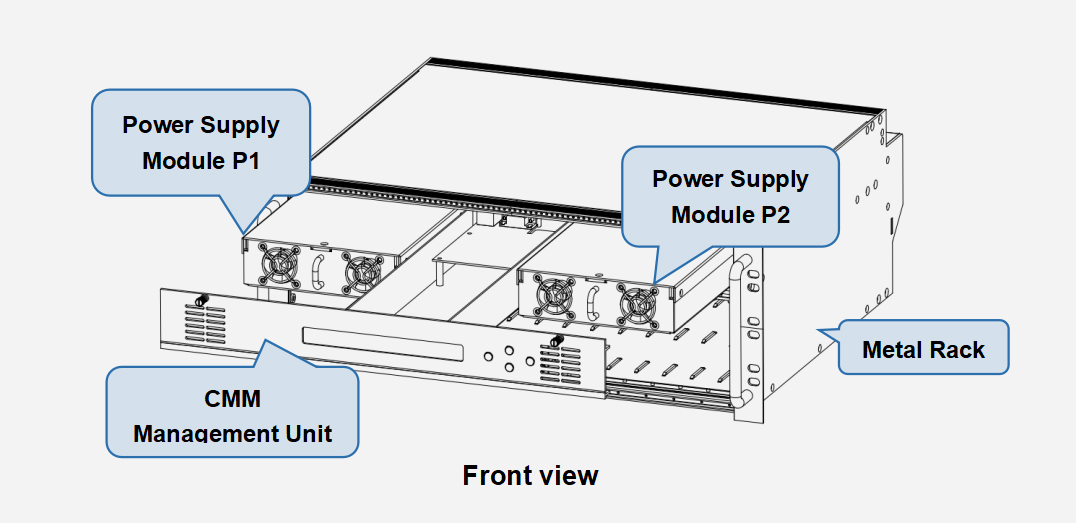

Structure Description:

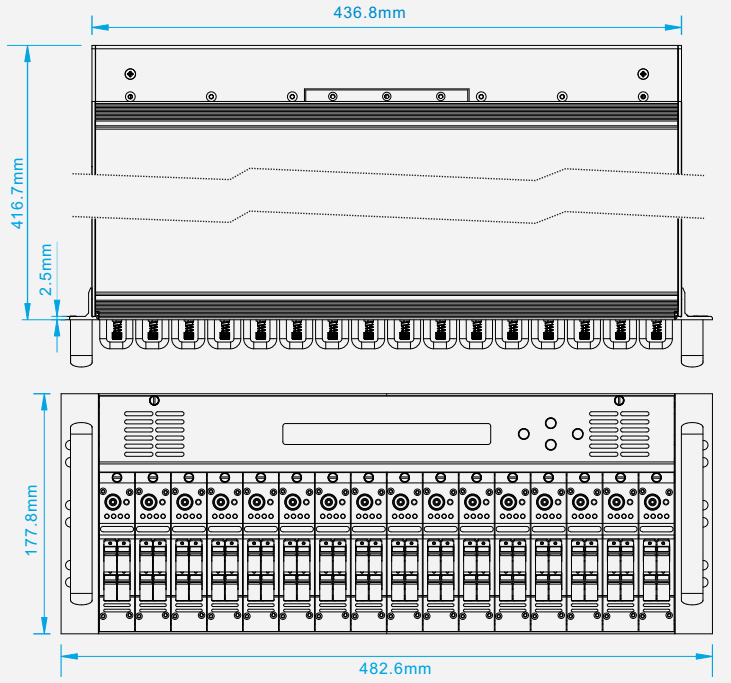

Dimension:
Installation:
● Installation should be done by professionals.
● Before installing any module, check whether the row pins on the rear of the module are bent.
● Tighten the fixing screws after installing any module.
● Install the power supply module before the CMM unit. Remove the CMM unit before the power supply module.
● Check whether the cable on the power supply module is removed when removing the module.
● When installing multiple optical platforms in the same cabinet, it is recommended that 1RU space be reserved between the optical platforms to facilitate heat dissipation.

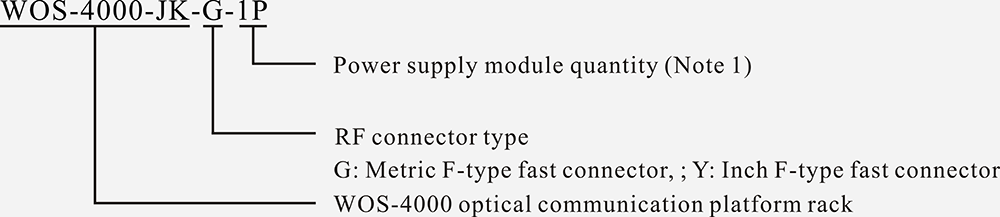

Naming Specification:
Note 1:
1P-A220: AC 220V single power supply
1P-D48: DC 48V single power supply
2P-A220: AC 220V dual power supplies
2P-D48: DC 48V dual power supplies
2P-A220+D48: AC 220V+DC 48V dual power supplies
Note 2: The power cord type is a national standard three-pin plug. Other requirements, please specify in the
order.
