WDG-5801 ASI to IP gateway is an ASI and IP converter device that is designed and manufactured by Hangzhou Prevail Company according to DVB and Ethernet-related standards. WDG-5801 has a total of eight ASI inputs, Max. The bitrates of each port are up to 214Mbps. WDG-5801 has one “TS over IP” 10/100/1000Mbps auto-negotiation Ethernet interface as a data port, and one 100Base-T as a control port.WDG-5801 supports IP unicast or broadcast, 1~7 TS packet could be put in each IP packet. WDG-5801 can be controlled or confabulated easily by NMS through the connection with that 100Base-T fast Ethernet port on the device.
send inquiryFeatures
● Up to 8 ASI input, one of IP output
● Max. bitrate up to 214Mbps for each input channel, automatic detection for both 188 and 204 byte input format
● Support SPTS or MPTS output
● 10/100/1000BASE-T Gigabit Ethernet with Auto-negotiation bit rate
● Based on UDP packet and IPv4 protocol, support 1~7 TS packet in each IP package
● Low latency (less than 10ms), Max. throughput of 214Mbps
● IP unicast or broadcast-compliant
● PCR correction
● Jitter elimination(10~900ms)
● 10/100BASE-T Ethernet control port.
Application
● DVB TS to IP conversion in digital TV contribution or distribution world
Compatible
● EN 50083-9
● ETSI TR 101 154
● ETSI TR 101 891
● EN 300 429
● ITU-T J.83A
● IEEE-802.3
Recommended Operating Conditions
Stress in excess of the maximum absolute ratings can cause permanent damage to the device (See Table 1)
Table 1 – Recommended Operating Conditions
Parameter | Symbol | Min. | Max. | Unit |
Supply Voltage Note | V | 90 | 250 | V |
Supply Frequency | F | 49 | 51 | Hz |
Power consumption | C | 25 | W | |
Ambient Operating Temperature | Tw | 0 | 50 | °C |
Storage Temperature | Ts | -25 | 55 | °C |
Operating Humidity | H | 10 | 75 | % |
Note: Support both 110V and 220V supply voltage standards, but please let us know which one do you need when you release order.
Specifications
Table 2 – Technical Specifications
Parameter | Symbol | Description | Unit | Remark |
Mechanical dimension | ||||
Height | H | 42 | mm | About 1U |
Width | W | 434 | mm | About 17” |
Depth | D | 340 | mm | |
ASI INPUT | ||||
Number of ASI input | - | 8 | pcs | |
Impedance | - | 75 | W | |
Connector | - | BNC | NA | |
Maximum bit rate | - | 108 | Mbps | |
TS packet format | - | 188 or 204 | Byte | Automatic detection |
Transmission format | - | Data packet or data burst | NA | |
IP OUTPUT (DATA) | ||||
Type | 10/100/1000BASE-T | Auto-negotiation | ||
Connector | RJ45 | |||
Max. throughput | 900 | Mbps | ||
Compatible protocol | IP V4, UDP, ARP | |||
CONTROL PORT | ||||
Type | 10/100BASE-T | |||
Connector | RJ45 | |||
Max. bitrate | 125 | Mbps |
Panel Diagram

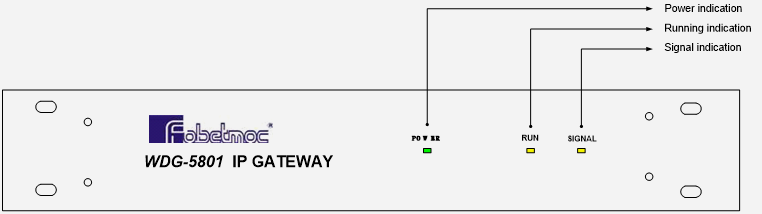

Front panel:
Rear panel:
Ordering Information
P/N | Description |
WDG-5801 | ASI to IP convertor, eight ASI inputs, gigabit Ethernet output with 1000BASE-T RJ45 connector, compatible with UDP, IPv4 protocol, fast Ethernet control port with web browser |
Reversion History
Reversion | Updating description | Date |
REV. 1.0 | New datasheet | 2013/1/22 |
REV. 1.1 | Update the Logo | 2013/3/27 |
