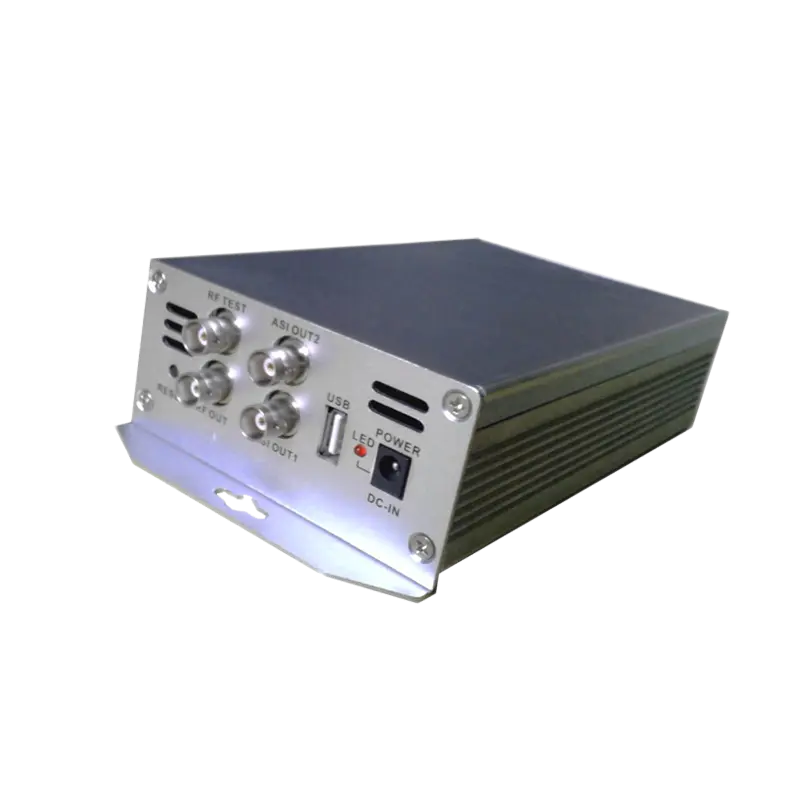

D-Master 9801 is a new compact chassis and cost-effective QAM modulator, which is designed by Hangzhou Prevail according to DVB-related standards. D-Master 9801 has 1000Mbps IP inputs, the RF output supports 16QAM~256QAM modes. The device allows IP input signals applied to TV distributions in home entertainment, surveillance control, hotel digital signals, shops, etc.The D-Master 9801 has a very convenient management interface, the user can complete all operation access through the Ethernet port on the device.
send inquiryFeatures
● Convert RTSP/HLS to MPEG-TS
● IP input up to 8 programs with RTSP/HLS stream
● IP input(H.264 video format) and 1*DVB-C RF out with ASI output.
● Support 1.15MHz~8.05MHz bandwidth
● Support 16QAM、32QAM、64QAM、128QAM、256QAM modulation modes
● Provide RF output monitoring port (-20dB)
● Adjustable Symbol Rate up to 7Mbaud
● Nominal RF Output power ≥120dBuV ( with 0~10dB adjustable attenuation range) and 48~863MHz frequency range
● Access via Ethernet link
Application
● DVB-C QAM modulation
● Monitoring system to CATV system
Compatible
● EN 50083-9
● ETSI TR 101 154
● ETSI TR 101 891
● EN 300 429
● ITU-T J.83A/C
Recommended Operating Conditions
Stress in excess of the maximum absolute ratings can cause permanent damage to the device (See Table 1)
Table 1 – Recommended Operating Conditions
Parameter | Symbol | Min. | Max. | Unit |
Supply Voltage Note | V | 110 | 240 | V |
Supply Frequency | F | 49 | 51 | Hz |
Power Consumption | C | 20(12V/2A) | W | |
Ambient Operating Temperature | Tw | 0 | 50 | °C |
Storage Temperature | Ts | -25 | 55 | °C |
Operating Humidity | H | 0 | 45 | % |
Note: Support both 110V and 220V supply voltage standards, but please let us know which one do you need when you release order.
Specifications
Table 2 – Technical Specifications
Parameter | Symbol | Description | Unit | Remark |
Mechanical dimension | ||||
Height | H | 53 | mm | |
Width | W | 107 | mm | |
Depth | D | 171 | mm | |
IP Port | ||||
Type | - | 1000BASE-T | ||
Connector | - | RJ45 | ||
Max. throughput | - | 900 | Mbps | |
Compatible protocol | - | IP V4, RTSP,HLS | HLS (HTTP Live Streaming) | |
RF Output | ||||
Impedance | - | 75 | W | |
Connector | - | BNC | NA | |
Frequency | - | 48~863 | MHz | |
Output level | - | >120 | dBuV | Adjustable |
ASI Output | ||||
Number of ASI output | - | 2 | ||
Impedance | - | 75 | W | |
Connector | - | BNC | NA | |
Effective bit rate | - | ≤51.6 | Mbps | |
Modulation Specification | ||||
Modulation scheme | 16~256QAM | |||
Symbol Rate | SR | 1~7 | Mbaud | |
Bandwidth | BW | 1.15~8.05 | MHz | |
Effective output bit rate | ≤51.6 | Mbps | SR=7Mbaud, 256QAM | |
Modulation Error Rate | MER | ≥40 | dB | After equalizer, 64QAM |
Bit Error Rate | BER | ≥9x10E-9 | After FEC, 64QAM | |
Carrier to Noise | C/N | ≥45 | dB |
Panel Diagram

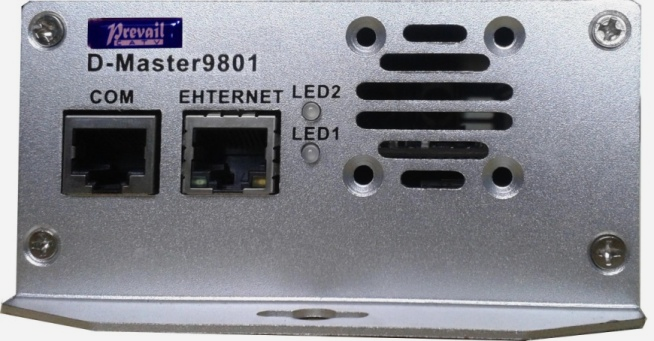

Front panel:

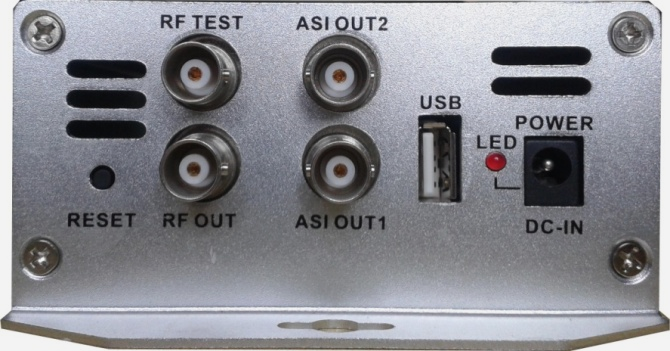

Rear panel:
Ordering Information
Part Number | Description |
D-Master 9801 | DVB-C IPQAM for camera,H.264 IP input(1~8 programs),RF output support 16~256QAM modes, output frequency range is 48~863MHz,SR=1~7Mbaud |
Reversion History
Reversion | Updating description | Date |
REV. 1.0 | New datasheet | 2015/11/5 |
REV. 2.0 | Add new interface and new functions | 2015/12/12 |
REV. 2.1 | Add http | 2016/4/15 |
