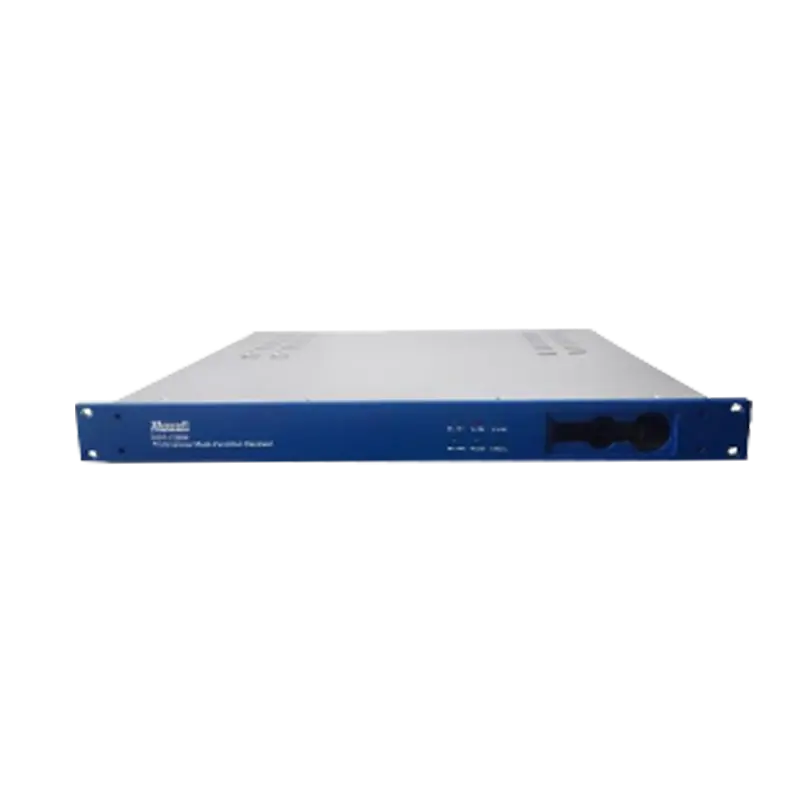

Double Channels DVB-C/S/S2/S2X/T/T2 SD/HD MPEG-2/H.264 IRD: WDT-1200H

The WDT-1200H is a professional HD integrated receiver decoder (with 2 DVB-CI interfaces) that is fully compatible with receiving free and encrypted programs.You can flexibly select the input signal for descrambling or multiplexing. These signals from the Tuner (demodulated satellite and cable encrypted programs), IP, and ASI are sent to the CAM card for processing through internal multiplexing or internal selection, finally, it outputs the free ASI or IP signal by the CAM descrambling card.

  • Hardware specifications
  • Features

    2 full-function Tuner input (support 2 DVB-C/T/T2 signal input, 2 DVB-S/S2 signal input)

    ● Support HD/SD H.264, MPEG-2, AVS, AVS+decoding

    ● Support PAL, NTSC or SECAM

    ● 2 independent CIM modules, support single/multiple descrambling, double card multiple descrambling, and up to 16 programs

    ● Support various CAS
    ● Support optical fiber digital audio (SPDIF) output

    ● Support multiplexing each other from Tuner, IP, and ASI signals

    ● Built-in PID filtering, PSI/SI editing and generating

    ● Support PMT auto-update

    ● Support BISS decoding Support volume control

    ● Aspect ratio: auto, 16:9, 4:3 optional

    ● Supporting dual power supply hot plug
    ● Video decoding: 1 HD and 1 SD with homologous or non-homologous output
    ● one of NMS interface, support Web network management

    Application
    ● Receiving digital TV programs from satellite
    ● TS OVER IP digital head-end system

    Compatible

    ● EN 50083-9

    ● ISO/IEC 13818-1

    ● ETSI TR 101 154

    ● ETSI TR 101 891

    ● IEEE802.3

    Recommended Operating Conditions
    Stress in excess of the maximum absolute ratings can cause permanent damage to the device (See Table 1)
    Table 1 – Recommended Operating Conditions
    Parameter Symbol Min. Max. Unit
    Supply Voltage Note V 90 250 V
    Supply Frequency F 49 51 Hz
    power consumption C 25 W
    Ambient Operating Temperature Tw 0 50 °C
    Storage Temperature Ts -25 55 °C
    Operating Humidity H 10 75 %
    Note: Support both 110V and 220V supply voltage standards, but please let us know which one do you need when you release order.

    Specifications
    Table 2 – Technical Specifications
    Parameter Description
    Mechanical dimension 42*434*346(H*W*D)mm
    Input interface RF input: Independent 2 ASI input: BNC-Female,75Ω
    IP input: one optical port and one electrical port; Maximum support 512
    UDP/RTP input
    DVB-C Demodulation 110~862MHz full band tuner
    Fully compliant with ETS300 429 specification for DVB-C application Output MPEG-2 parallel/serial transport stream
    Support 4/16/32/64/128/256QAM for DVB-C
    DVB-T/T2 Demodulation 170~862MHz full band tuner
    Support 5/6/7/8MHz and 1.7MHz BW for T2
    Complies with DTG7.0, NorDig-Unified test specification ver2.2.1 and targeting upcoming digital Europe Ebook requirements
    Output MPEG-2 parallel/serial transport stream
    superior low noise and high sensitivity performance
    support all code rates, constellations, guard intervals LP and HP streams
    DVB-T2: EN 302 755
    Modulation type: QPSK 16QAM 64QAM 256QAM FFT mode: 1K 2K 4K 8K 16K 32K
    Channel bandwidth: 6MHz 7MHz 8MHz Code rate: 1/2 3/5 2/3 3/4 4/5 5/6
    Guard internal: 1/4 5/32 1/8 5/64 1/16 1/32 1/64 1/128
    DVB-T: EN 300 744
    Modulation type: QPSK 16QAM 64QAM FFT mode: 2K 8K
    Channel bandwidth: 6MHz 7MHz 8MHz Code rate: 1/2 2/3 3/4 5/6 7/8
    Guard internal: 1/4 1/8 1/16 1/32
    DVB-S/S2 Demodulation Input frequency: 950~2150MHz Input signal level -65~-25dBm
    Complies with NorDig-Unified test specification ver2.2.1 Symbol rate: 8SPK 1~45Msym/s (TS output parallel mode)
    8SPK 1~31Msym/s (TS output serial mode) QPSK 1~45Msym/s
    Code rate: 8PSK 3/5 2/3 3/4 5/6 8/9 9/10
    QPSK 1/4 1/3 2/5 1/2 3/5 2/3 3/4 4/5 5/6 8/9 9/10
    Conforms to DiSEqC 1.x and 2.x and signal cable Distribution Fast and accurate channels scan
    CI interface Support for the European DVB-CSA Cam module interface number 2 Smart card interface: ISO7816
    Device exclusive card: PCMCIA
    Video decode Video interface: HDMI/CVBS/HDSDI Aspect Ratio: 4:3, 16:9
    Resolution:1080p60/1080p50/1080p30/1080p24/1080i60/1080i50/720p/576p
    /576i/480p/480i
    Video Mode: PAL/NTSC /SECAM
    Video Decoding Mode: MPEG-2/H.264 AVC/AVS+
    Audio Decode Audio Interface: 1 channel fiber digital audio (SPDIF), 1 group of RCA stereo (R/L), HDMI embedded audio, HDSDI embedded audio
    Sound Decode: MPEG-I Layer I and II
    Audio Operating Mode: Single Track/Double Track/Stereo Audio Sampling Frequency: 32/44.1/48KHz

    Panel Diagram

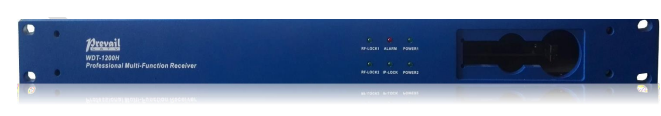

    Front panel:

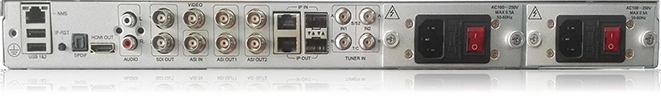

    Rear panel:



    Ordering Information

    Model Number Description
    WDT-1200H Dual tuner compatible DVB-C/S/S2/T/T2 input, 1 ASI input, 1 IP input (one optical port and one electrical port);
    2 CAM modules can be independently descrambling; 2X2 DVB-ASI output; 1 IP output (one optical port and one electrical port), supports 32 UDP/RTP output; by Web network management to control.
    Decode output: support MPEG-2/H.264 AVC/AVS+, with HDMI/CVBS/ HDSDI
    output.

    Reversion History

    Reversion Updating description Date
    REV. 1.0 New datasheet 2018/3/30
    REV. 1.1 Update tuner function 2019/11/14
about prevail
