8 in 1 TS Receiver:WDT-1208D

The WDT-1208 is a new compact (1RU only) chassis and cost-effective multi-functional TS receiver that is designed by Hangzhou Prevail according to DVB-related standards. It is a project-based digital stream converter, fully complies with DVB-S/S2/T/T2/C standards, and receives all non-encrypted digital programs at home and abroad. WDT-1208 has 6 RF input ports and 2 ASI input ports, 2 group ASI output after multiplexing with loop output, 1 Network management port, and 1 IP output port. Through the Ethernet link, users can view the device status; set the Tuner parameters, signal quality control and other related functions, easy operation, and friendly interface.

send inquiry

Back List

Features

● 6 tuner inputs, 2 ASI inputs

● 2X2 ASI outputs and IP output

● Compatible with DVB-S/S2,DVB-T/T2,DVB-C

● IP module(option) up to 32 programs with SPTS mode

● Zero jitter on TS over IP output, support MPTS or SPTS

● PID filtering and re-mapping

● PSI/SI tables regeneration

● PCR correction

● Memory protection for power-fail

● Multi-languages and interfaces for choosing

● Signal strength, quality of instruction

● Access via Ethernet link

Application

● Digital TV head-end system

● DVB mode: MPTS

● IPTV mode: SPTS

● Remote video education

Compatible

● EN 50083-9

● ISO/IEC 13818-1

● ETSI TR 101 1 54

● ETSI TR 101 891

● EN300 429

Recommended Operating Conditions

Stress in excess of the maximum absolute ratings can cause permanent damage to the device (See Table 1)

Table 1 – Recommended Operating Conditions

Parameter	Symbol	Min.	Max.	Unit
Supply Voltage Note	V	90	250	V
Supply Frequency	F	49	51	Hz
power consumption	C		25	W
Ambient Operating Temperature	Tw	0	50	°C
Storage Temperature	Ts	-25	55	°C
Operating Humidity	H	10	75	%

Note: Support both 110V and 220V supply voltage standards, but please let us know which one do you need when you release order.

Specifications

Table 2 – Technical Specifications

Project	Parameter
RF interface
Number of port	6 RF input ports with loop output
Standard	DVB-S/S2,DVB-T/T2,DVB-C
interface type	F-Female
Impedance	75Ω
Input frequency	S/S2:950 ~ 2150MHz; DVB-T: 60~900MHz; DVB-C:50~860MHz
Signal level	-65~-25dBm
Symbol rate	5.0~45Msym/s(QPSK);10.0~31Msym/s(8PSK)
Demodulation	DVB-S:QPSK; DVB-S2:QPSK /8PSK;
	DVB-T:QPSK/16QAM/64QAM;
	DVB-C:4QAM~256QAM
Follow the standard	DVB-S:EN300 421; DVB-S2:EN302 307 DVB-C:EN300 429; DVB-T:ETS 300
LNB Power supply	DVB-S/S2:0V/+DC13V/18V,Imax=400mA
ASI interface
Number of port	2 ASI inputs, 2X2 ASI outputs
interface type	BNC
Impedance	75Ω
Level range	800mv±5%
Physical bandwidth	108Mbps
Packet format	188/204 byte
Network management interface
Number of port	1
Electrical standards	100BAS-T
interface type	RJ45
IP output
Number of port	1
Electrical standards	1000BASE-T
interface type	RJ45
Physical bandwidth	1000Mbps

Panel Diagram

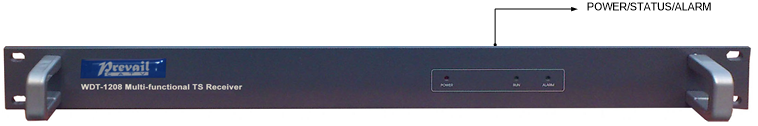

Front panel：

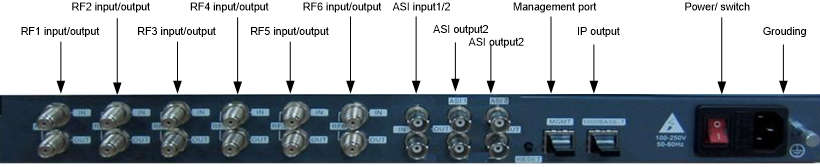

Rear panel：

Ordering Information

Part Number	Description
WDT-1208-S/S2	Input frequency: 950 ~ 2150MHz.
WDT-1208-S/S2	6 RF input ports and 2 ASI input ports, support multiplexing, 2X2 ASI outputs, 1 Network management port.
WDT-1208-S/S2-IPA	Input frequency: 950 ~ 2150MHz.
	6 RF input ports and 2 ASI input ports, support multiplexing, 2X2 ASI outputs, 1 Network management port, 10/100/1000Mbps auto-negotiation bitrates TS over IP output(option).
	IP module A: support 2MPTS or 8SPTS.
WDT-1208-S/S2-IPB	Input frequency: 950 ~ 2150MHz.
	6 RF input ports and 2 ASI input ports, support multiplexing, 2X2 ASI outputs, 1 Network management port, 10/100/1000Mbps auto-negotiation bitrates TS over IP output(option).
	IP module B: support 2MTPS or 32SPTS.
WDT-1208-T/T2	Input frequency: 60~900MHz.
WDT-1208-T/T2	6 RF input ports and 2 ASI input ports, support multiplexing, 2X2 ASI outputs, 1 Network management port.
WDT-1208-T/T2-IPA	Input frequency: 60~900MHz.
	6 RF input ports and 2 ASI input ports, support multiplexing, 2X2 ASI outputs, 1 Network management port, 10/100/1000Mbps auto-negotiation bitrates TS over IP output(option).
	IP module A: support 2MPTS or 8SPTS.
WDT-1208-T/T2-IPB	Input frequency: 60~900MHz.
	6 RF input ports and 2 ASI input ports, support multiplexing, 2X2 ASI outputs, 1 Network management port, 10/100/1000Mbps auto-negotiation bitrates TS over IP output(option).
	IP module B: support 2MTPS or 32SPTS.
WDT-1208-C	Input frequency: 50~860MHz.
WDT-1208-C	6 RF input ports and 2 ASI input ports, support multiplexing, 2X2 ASI outputs, 1 Network management port.
WDT-1208-C-IPA	Input frequency: 50~860MHz.
	6 RF input ports and 2 ASI input ports, support multiplexing, 2X2 ASI outputs, 1 Network management port, 10/100/1000Mbps auto-negotiation bitrates TS over IP output(option).
	IP module A: support 2MPTS or 8SPTS.
WDT-1208-C-IPB	Input frequency: 50~860MHz.
	6 RF input ports and 2 ASI input ports, support multiplexing, 2X2 ASI outputs, 1 Network management port, 10/100/1000Mbps auto-negotiation bitrates TS over IP output(option).
	IP module B: support 2MTPS or 32SPTS.

Reversion History

Reversion	Updating description	Date
REV. 1.0	New datasheet	2012/12/29
REV. 2.0	Update the Logo	2013/3/27
REV. 2.1	Add DVB-T/C	2013/5/24
REV. 2.2	Add product picture	2013/6/27
REV. 2.3	Add 32*SPTS	2014/4/29
REV. 2.4	Update about IP module description	2014/7/29
REV. 2.5	IPA module add support 8*SPTS	2015/12/17
