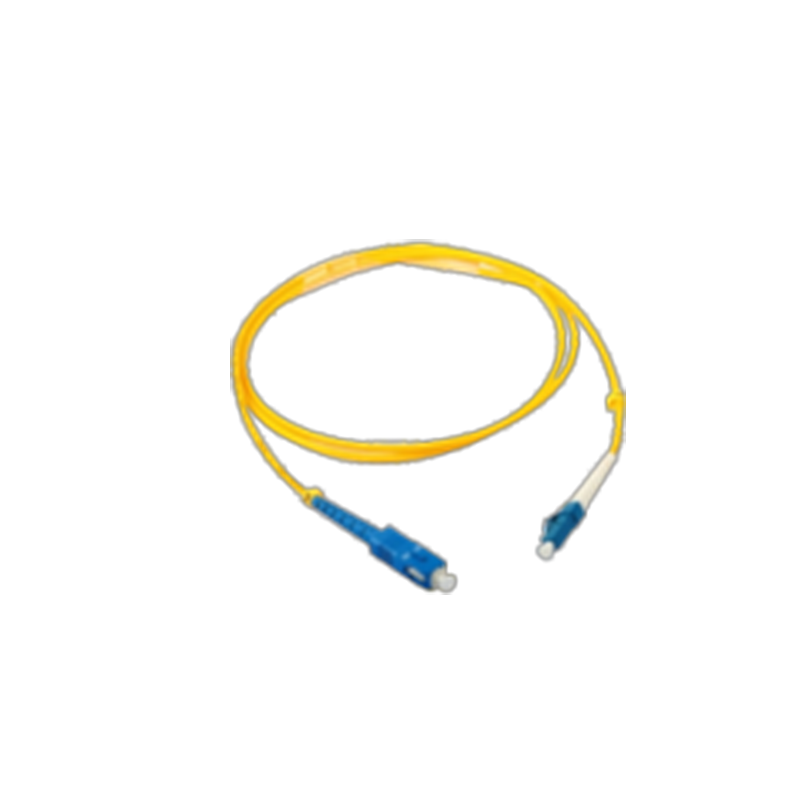

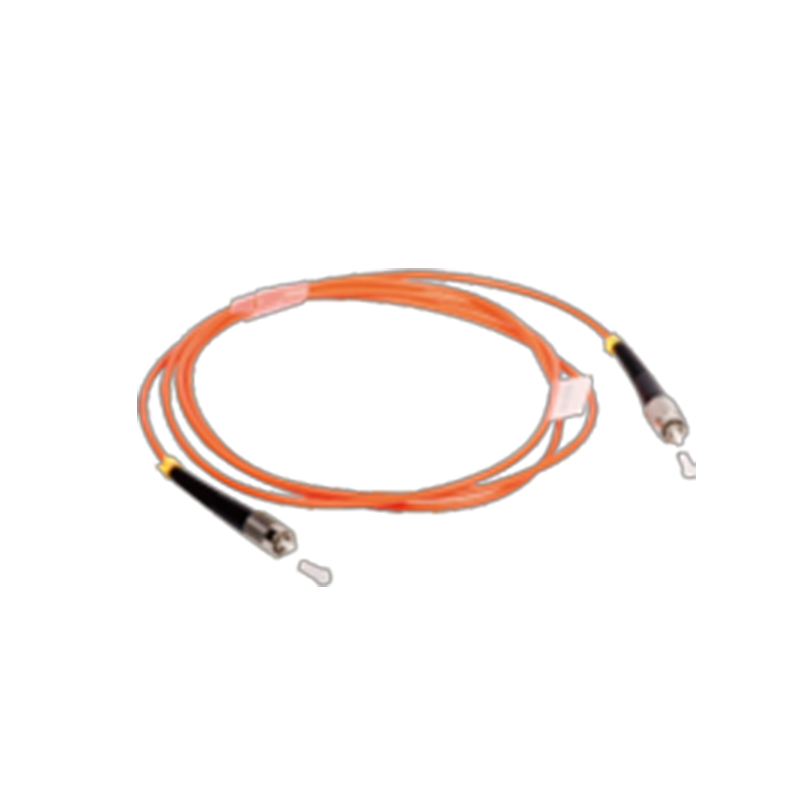

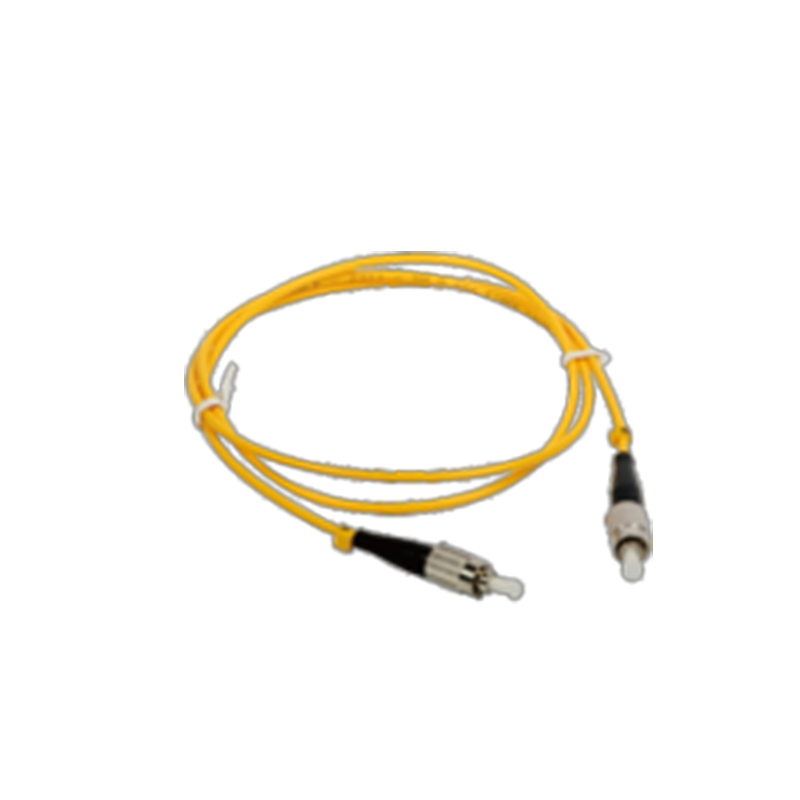

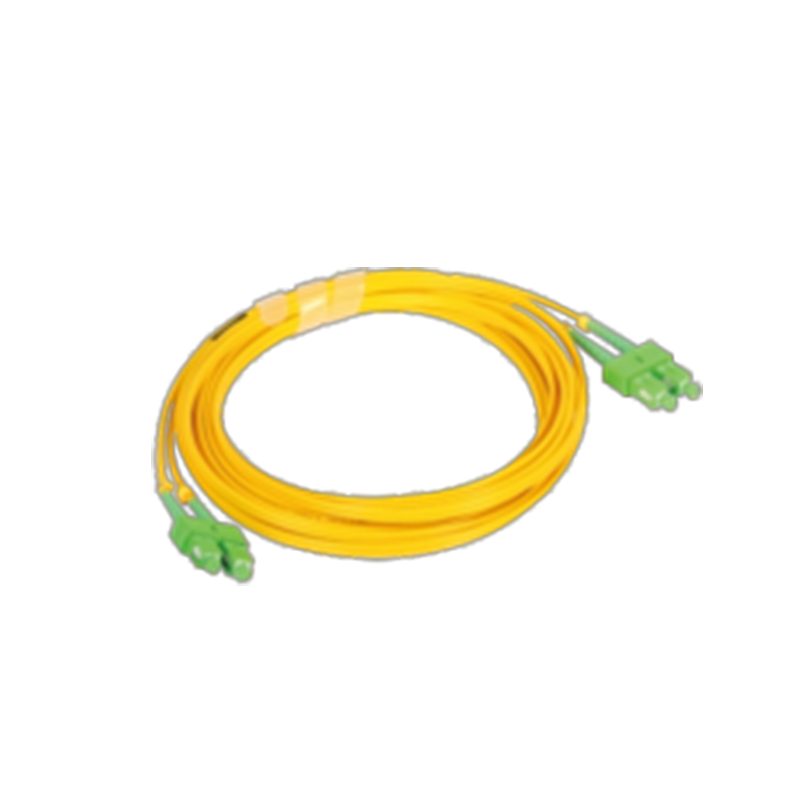

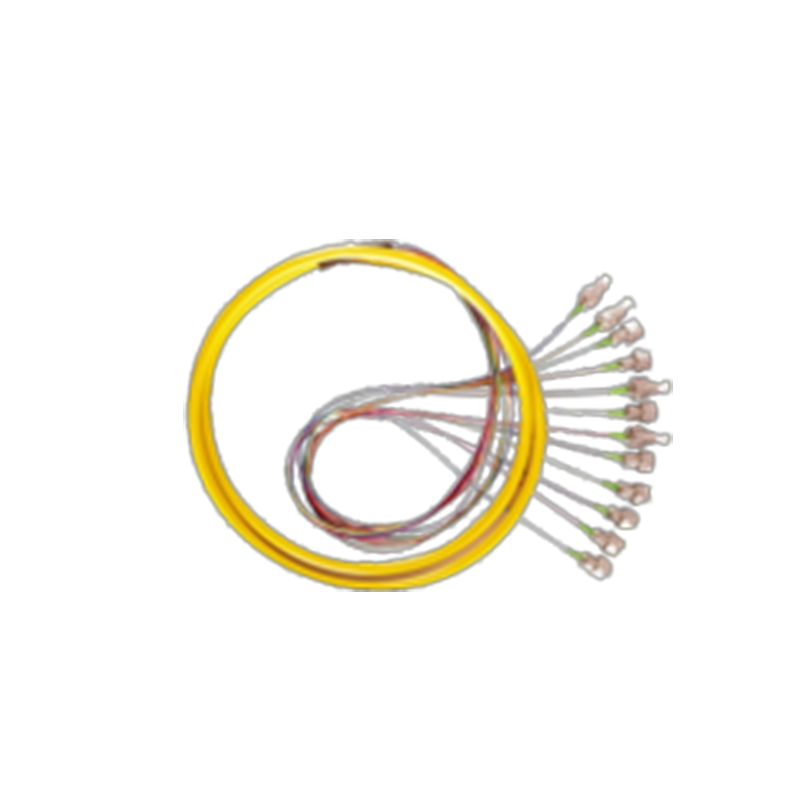

Fiber Optical Connectors and Pigtails

Optical fiber connectors, i.e. fiber optic patch cords, are devices that are detachably (actively) connected between optical fibers which will affect the reliability and performance of the optical transmission according to its quality.We offer optical fiber connectors of various types and performances, such as FC, SC, ST, LC, MU, DIN, E2000, MPO, etc.

send inquiry Back List

PREV:SFP Optical Module
NEXT:WDM Wavelength Division Multiplexer

Hardware specifications

Types	PC	UPC	APC
Insertion Loss(dB )	<0 .20	<0 .20	<0 .30
Repeatability(dB)	<0 .20
Interchangeability(dB)	<0 .20
Return Loss(dB)	>50[SM]	>55[SM]	>60[SM]
Fiber type	SMF-28TM ,9/ 125 μm [SM]； 50/ 125 μm or 62 .5/ 125μm [MM]
Operating Temperature(℃)	-40 . . . . . . +80
Storage Temperature(℃)	-40 . . . . . . +85
Plug times	≥1000
